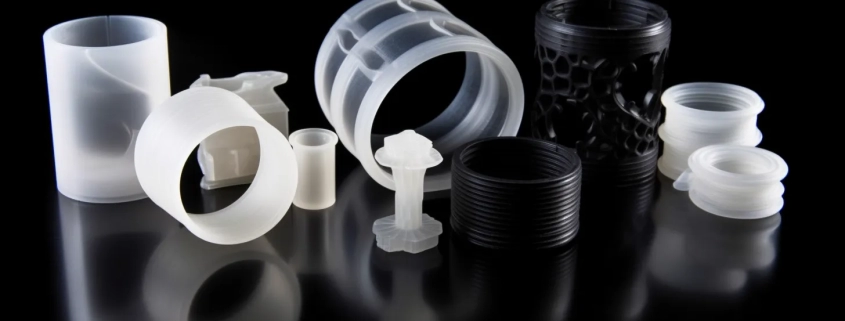

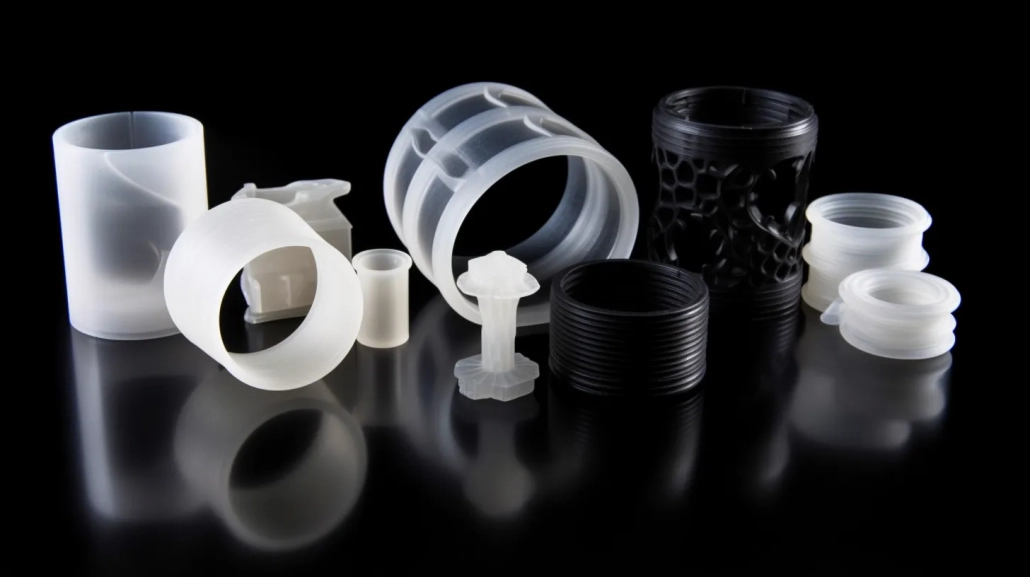

Revolutionizing Industries: The Potential and Future of 3D Printing with Silicone Rubber

In the rapidly evolving world of manufacturing, new technologies and materials are constantly pushing the boundaries of what is possible. One area that has seen significant progress is the domain of 3D printing. Originally limited to a narrow selection of plastic-based materials, the scope of 3D printing has broadened immensely. Today, it encompasses a variety of materials, including metals, ceramics, and a fascinating entrant – silicone rubber.

Silicone rubber has a unique set of properties that make it stand out in the realm of materials science. Its resilience to extreme temperatures, flexibility, and durability have made it a popular choice in many applications, from automotive parts to kitchen utensils and medical devices. The use of silicone rubber in 3D printing, however, opens a new chapter in silicon manufacturing, merging the flexibility of this material with the versatility and customization possibilities of 3D printing.

But what does this mean for industries, and how does the process of 3D printing with silicone rubber actually work? This article aims to dive deep into these questions, providing an in-depth look at the intersection of silicone rubber and 3D printing – an exciting frontier in the world of manufacturing technology.

Understanding Silicone Rubber

Building on our introduction of silicone rubber’s potential in 3D printing, it’s essential to delve deeper into this intriguing material. Understanding silicone rubber’s origins, unique properties, and the challenges it presents in traditional manufacturing will illuminate why it’s such a promising material for 3D printing applications.

The Origins of Silicone Rubber

Silicone rubber has a fascinating history that dates back to the early 20th century. The journey began with Frederick Kipping, a British chemist who, in the 1900s, conducted extensive research on organosilicon compounds. His work, however, was primarily academic, and it wasn’t until several decades later, during World War II, that James Franklin Hyde at the American company Corning Incorporated, began developing practical applications of silicones. This marked a turning point in the history of silicon manufacturing.

As time progressed, the unique properties of silicone rubber began to be harnessed more broadly. It gained significant traction in the 1960s, when the space race necessitated materials that could withstand extreme conditions. Silicone rubber, with its exceptional thermal stability and resistance to weathering, was a perfect fit.

Intrinsic Properties: A Match for 3D Printing

Silicone rubber boasts a unique combination of properties that make it an attractive candidate for 3D printing. It is thermally stable, maintaining its mechanical properties over a wide range of temperatures, from as low as -55°C to as high as 300°C. It also has excellent flexibility, allowing it to be shaped into complex geometries without losing its structural integrity.

Moreover, silicone rubber is chemically inert, meaning it doesn’t react with most chemicals. It’s also biocompatible, making it suitable for medical applications. Lastly, it’s a great electrical insulator. This mix of properties allows silicone rubber to be used in a wide array of applications, from healthcare and food production to aerospace and electronics.

As a result, incorporating silicone rubber into 3D printing technology opens up a myriad of possibilities. The precision and customization offered by 3D printing, when combined with the properties of silicone rubber, create the potential for highly specialized parts to be produced rapidly and efficiently.

Traditional Manufacturing Challenges

Despite its many advantages, silicone rubber also presents certain challenges in traditional manufacturing processes. For example, the process of molding silicone rubber requires the creation of expensive, time-consuming molds. This isn’t cost-effective for small-batch production or customized parts.

Moreover, due to its elasticity, silicone rubber parts often need to be post-processed after molding to achieve the desired precision. This additional step increases the production time and cost.

Another challenge arises from the fact that silicone rubber needs to be cured to achieve its final properties. Traditional curing methods, such as heat curing, can be time-consuming and energy-intensive. It also requires precise control of temperature and pressure to avoid defects in the final product.

These challenges, while significant in traditional manufacturing contexts, are areas where 3D printing technology can offer solutions. By eliminating the need for molds and reducing post-processing requirements, 3D printing with silicone rubber can provide more efficient, cost-effective, and customizable manufacturing solutions.

Linking our understanding of silicone rubber’s history and its inherent properties to its use in 3D printing, it becomes clear why this material has captured the interest of manufacturers and researchers alike. As we venture into a new era of manufacturing, silicone rubber, combined with 3D printing, has the potential to revolutionize multiple sectors, from healthcare to aerospace and beyond.

The Evolution of 3D Printing

With a comprehensive understanding of silicone rubber under our belts, it is time to explore another core component of our topic: 3D printing.

The Advent and Progression of 3D Printing

The concept of 3D printing first came to life in the 1980s, pioneered by Charles Hull, who developed a process known as Stereolithography (SLA). This groundbreaking technology used ultraviolet lasers to solidify photopolymer, a type of resin, into three-dimensional shapes, layer by layer.

Progress didn’t stop there. The 1990s saw the advent of Fused Deposition Modeling (FDM), a process that uses a heated nozzle to deposit thermoplastic material layer by layer to build a 3D object. This was closely followed by Selective Laser Sintering (SLS), which uses high-powered lasers to fuse small particles of plastic, metal, ceramic, or glass powders into a 3D shape.

Dissecting the Types: From FDM to SLA and SLS

Each 3D printing technology has its unique characteristics and applications. Understanding these differences is crucial to discerning why silicone rubber has become a critical player in this arena.

Fused Deposition Modeling (FDM) is known for its cost-effectiveness and simplicity, making it a popular choice for hobbyists and entry-level applications,  with a market share of approximately 42% in 2022​. However, it often falls short when high precision or complex structures are required.

Stereolithography (SLA), the first form of 3D printing, is celebrated for its exceptional resolution and precision. It is an excellent choice for creating detailed parts, with the global SLA 3D printing market projected to reach $1.3 billion by 2025​. However, objects created with SLA can be brittle, limiting its applications.

Selective Laser Sintering (SLS) is a versatile 3D printing method that can create durable and complex structures without the need for supports. It is ideal for functional prototypes and end-use parts. However, the cost and accessibility of SLS are major drawbacks for its widespread use.

3D Printing: A Paradigm Shift in Manufacturing

3D printing has multiple advantages over traditional manufacturing methods. First, it eliminates the need for expensive tooling and setup costs, making it a cost-effective solution for low-volume production and custom parts. In 2020, 3D printing was reported to reduce these costs by up to 70% in some cases.

Second, it allows for the creation of complex geometries that are impossible or prohibitively expensive to produce with traditional methods. This capability has opened up new avenues for innovation in design and functionality.

In the context of silicone manufacturing, 3D printing tackles many of the challenges associated with traditional methods. By bypassing the need for molds and reducing the waste associated with machining, 3D printing can lead to more efficient, cost-effective, and customizable silicone products.

In the next section, we will delve into the convergence of silicone rubber and 3D printing, discussing how these two innovative technologies can work in tandem to revolutionize the world of silicone manufacturing.

Silicone Rubber in 3D Printing

Building on our understanding of both silicone rubber and 3D printing, it’s time to delve into the unique fusion of these two domains and explore how they collectively revolutionize the world of silicone manufacturing.

Silicone Rubber: A New Material for 3D Printing

The introduction of silicone rubber into the 3D printing arena has opened up new possibilities in additive manufacturing. Owing to its exceptional characteristics such as high thermal resistance, flexibility, and biocompatibility, silicone rubber has made its mark as a highly sought-after material in 3D printing. The diverse applications span from healthcare devices like prosthetics and implants, through to industrial parts, and even everyday consumer items. It’s projected that the global market for silicone in 3D printing will grow at a CAGR of 7.2% from 2021 to 2026, hitting an estimated $181.5 million by 2026​​.

the 3D Printing Process with Silicone Rubber

The 3D printing process with silicone rubber warrants a detailed explanation, given its uniqueness compared to traditional 3D printing materials. Liquid Additive Manufacturing (LAM) is a common method used, and it shares similarities with FDM but incorporates special steps due to the unique properties of silicone. Here’s a step-by-step breakdown of the process:

Material Preparation: Liquid silicone rubber (LSR) is prepared for the print process. This material is a two-part, platinum-cured silicone system that requires thorough mixing before use. The components are kept separate until right before extrusion to prevent premature curing.

Extrusion: The prepared LSR is then extruded through a heated nozzle onto a building platform. The heating helps keep the silicone in a more fluid state, improving the precision of the deposition.

Curing: Once a layer is deposited, it’s immediately exposed to ultraviolet (UV) light. The UV radiation triggers a reaction in the platinum catalyst, transforming the liquid silicone into a solid form.

Layer Deposition: After a layer is completely cured, the build platform is lowered, and the nozzle deposits the next layer of LSR. This is a critical step as each layer must bond perfectly with the previous one to ensure the structural integrity of the final object.

Post-Curing: Once the final object is fully printed, it undergoes a post-curing process. This involves heating the object in a controlled environment to ensure complete curing and to enhance the mechanical properties of the silicone rubber.

Navigating the Challenges in 3D Printing with Silicone Rubber

Despite its potential, 3D printing with silicone rubber does come with challenges. One of the primary obstacles is the high-temperature requirement for curing silicone rubber, which can reach up to 200°C. This requirement not only calls for high-performance 3D printers but also raises safety concerns.

Additionally, achieving uniform curing across all layers is a complex task. Any inconsistency in curing can lead to variation in the mechanical properties across different layers of the printed object, which can affect the product’s performance.

Managing the flow of LSR during extrusion is another balancing act. Too high a flow rate can lead to inaccuracies in the print, while too low a rate can result in under-extrusion, affecting the quality of the printed object.

These challenges notwithstanding, the significant potential of 3D printing with silicone rubber cannot be underestimated. As we move to the next section, we will delve into the transformative impact of this innovative process on the silicone manufacturing industry.

Case Studies of 3D Printing with Silicone Rubber

As we delve deeper into the world of silicone manufacturing, it’s fascinating to see how the advent of 3D printing technology has revolutionized the way silicone rubber is used across various industries. Let’s take a closer look at some compelling examples of 3D printed silicone rubber applications, and analyze the processes, challenges, and outcomes involved.

1.   Biomedical Industry: Customized Medical Devices

3D printing with silicone rubber has been especially beneficial in the biomedical industry, where the production of customized medical devices is crucial. For instance, hearing aids are typically tailored to the unique shape of the patient’s ear canal for maximum comfort and efficiency. Traditional methods of manufacturing these devices involve labor-intensive processes of taking an ear impression, casting a mold, and manually finishing the product.

The advent of 3D printing technology has significantly simplified this process. After scanning the patient’s ear, the data can be digitally processed and directly used to 3D print a perfectly fitting hearing aid shell using silicone rubber. This streamlined process reduces production time, increases accuracy, and minimizes the potential for human error.

However, there are some challenges to this approach. The available colors for 3D printed silicone are currently limited, which may not meet some patients’ aesthetic preferences. Additionally, the maximum size for 3D printed silicone parts is relatively small (4.7 in. x 2.8 in. x 3.9 in.), which could limit its application in larger medical devices​1​.

2.   Automotive Industry: Prototyping and Small-Scale Production

In the automotive industry, 3D printed silicone rubber is increasingly being used for prototyping and small-scale production of various parts such as seals and gaskets. Due to its high resistance to heat and deformation, silicone rubber is ideal for applications within the high-stress environment of a car engine.

The use of 3D printing technology allows for rapid prototyping, enabling manufacturers to test different designs quickly and economically. This agility accelerates the design iteration process, saving time and reducing costs. Moreover, the ability to produce small batches of parts is beneficial for vintage car restorations or custom car projects, where traditional manufacturing methods may be prohibitively expensive or time-consuming.

Despite these advantages, there are limitations to the use of 3D printing in this context. For instance, while the geometric flexibility of 3D printing is a boon for creating complex designs, the current maximum size of 3D printed silicone parts could restrict its use in certain applications. Additionally, if the intention is to eventually transition from 3D printing to injection molding for large-scale production, design considerations need to account for this from the very beginning, as not all designs are suitable for both processes​1​.

These case studies demonstrate the powerful potential of 3D printing with silicone rubber. However, as with any technology, its effective utilization requires an understanding of its capabilities and limitations.

As research and development continue in this field, we can expect to see further improvements and innovative applications in the future. It’s an exciting time in the world of silicone manufacturing, with 3D printing at the forefront of this evolution.

Potential and Future Applications

As we delve into the realm of what’s next for 3D printed silicone rubber, we uncover a trove of possibilities that could revolutionize various industries. From personalized healthcare to the on-demand manufacturing of custom gaskets, the future holds a great deal of promise.

Revolutionizing Personalized Healthcare

One of the most exciting prospects of 3D printed silicone rubber lies within the medical field. The ability to create patient-specific implants and prosthetics with intricate details and tailored properties would change the face of personalized healthcare. The soft and flexible nature of silicone, combined with the precision of 3D printing, enables the production of implants that match the exact anatomical requirements of each individual. The result is improved patient comfort, reduced recovery times, and potentially, a higher success rate for medical procedures.

Custom Gaskets and Wearable Tech

3D printed silicone rubber also has significant potential in the production of custom gaskets and wearable tech. The superior sealing capabilities and durability of silicone make it a prime candidate for creating custom, high-performance gaskets for a variety of applications, ranging from automotive to household appliances.

Similarly, the emergence of wearable technology presents a new frontier for 3D printed silicone. Given its biocompatibility and skin-friendly properties, silicone is the ideal material for wearable devices that require prolonged contact with the skin. Think of smartwatches, fitness trackers, or even medical devices — all potentially benefit from the customizable, comfortable fit offered by 3D printed silicone.

On-demand Manufacturing

The 3D printing process inherently supports on-demand manufacturing. It enables the production of small batch sizes without the need for expensive mold changes, making it perfect for producing highly customized products in a cost-effective manner. The potential to rapidly prototype, iterate, and produce silicone products on demand could drastically shorten time-to-market and reduce costs for many businesses.

Innovations on the Horizon

Looking ahead, the research and development in the field of 3D printed silicone rubber hint at even more exciting innovations. For instance, self-healing silicone rubber could open up a world of possibilities in various applications. Imagine a silicone product that can repair itself when damaged, extending its lifespan and reducing waste.

While the potential of 3D printed silicone rubber is immense, it’s important to remember that this technology is still in its relatively early stages. As researchers continue to push the boundaries of what’s possible, we can anticipate even more revolutionary applications in the future.

Environmental Impact

With the conversation about silicone manufacturing techniques so far, it’s only fitting that we now turn our attention to the environmental footprint associated with these processes.

Environmental Considerations in 3D Printing with Silicone Rubber

In comparison to traditional manufacturing processes, 3D printing has a lower environmental impact due to the reduction in waste material, as it’s an additive process, only using the material needed to build the part. However, the exact environmental footprint of 3D printing with silicone rubber isn’t straightforward and is dependent on a few factors.

One key consideration is the energy consumption of the 3D printer. These printers, especially those using Stereolithography (SLA) technology, can require significant amounts of energy to run. The laser used in SLA, which cures the silicone resin layer by layer to form the final product, is particularly energy-intensive. This energy requirement can be mitigated to some extent by using energy-efficient printers and optimizing print settings for efficiency.

The production and disposal of the silicone resin itself also contribute to the environmental impact. The process of producing silicone involves extracting silicon from silica sand, which is an energy-intensive process that generates carbon dioxide. Furthermore, the disposal of unused silicone resin can pose environmental concerns if not managed correctly, as silicone is not biodegradable. This means that it can persist in the environment for a long time if it ends up in a landfill.

Recyclability of 3D Printed Silicone Rubber Products

When we delve into the recyclability of 3D printed silicone rubber products, we find a complex picture. Silicone rubber is inherently durable and resistant to environmental factors, which is beneficial for the lifespan of the products but presents a challenge when it comes to their end of life.

Silicone rubber is not traditionally recycled due to its high heat and chemical resistance, which make it difficult to break down and repurpose. However, research is ongoing to develop methods of recycling silicone. Some companies have begun programs to collect and recycle silicone rubber, turning it into oils or other silicone products, but these programs are not yet widespread.

While the recycling of silicone rubber is currently limited, the durability and long life of silicone products can help to offset this. Silicone products often outlive their plastic counterparts, reducing the frequency of replacement and the associated environmental impact. Furthermore, in some applications, silicone can replace single-use plastics, providing a more sustainable alternative.

In conclusion, the environmental impact of 3D printing with silicone rubber is a complex issue. As technology and recycling methods continue to evolve, we can hope to see a reduction in these environmental impacts.

Conclusion

In the preceding sections, we have delved into the  3D printing with silicone rubber, exploring its processes, applications, benefits, challenges, and environmental impact. What emerges from this exploration is a clear image of a versatile, transformative technology with enormous potential to revolutionize various industries.

3D printing with silicone rubber combines the beneficial properties of silicone—such as its resistance to high temperatures, UV light, deformation, and acidic or alkaline environments—with the advantages of 3D printing technology, which includes greater design freedom, rapid prototyping capabilities, and the potential for personalized production. These attributes make 3D printed silicone products suitable for a wide range of applications, from medical devices and wearables to automotive parts and gaskets.

However, like any technology, 3D printing with silicone rubber is not without its challenges. Current limitations such as modest part size, lack of color options, and the necessity of overseas printing can pose obstacles. Yet these challenges also represent opportunities for future research and development. As the technology evolves, we can anticipate advancements that will address these issues and expand the capabilities of 3D printed silicone products.

The environmental impact of 3D printing with silicone rubber is a crucial consideration as we move forward. Although the additive nature of 3D printing reduces waste compared to traditional manufacturing processes, the energy consumption of 3D printers and the non-biodegradable nature of silicone present environmental concerns. Yet here too, we see a field ripe for innovation, with the potential for energy-efficient printers, improved silicone recycling methods, and responsible disposal practices.

Looking to the future, 3D printing with silicone rubber holds promise for many industries. It has the potential to revolutionize product design and manufacturing, offering greater flexibility and efficiency. It could lead to breakthroughs in fields such as healthcare, where the creation of customized medical devices could greatly enhance patient care. And it could contribute to environmental sustainability by reducing waste and potentially replacing less durable materials.

In conclusion, 3D printing with silicone rubber is a burgeoning technology with enormous potential. It is a testament to the transformative power of innovation, bringing together material science and advanced manufacturing techniques to create new possibilities. As the technology continues to evolve, it is poised to leave an indelible mark on various industries, contributing to advancements that can enhance our lives in countless ways. The future of 3D printing with silicone rubber is indeed exciting, and we can look forward to witnessing its continued evolution and impact.
