CNC Machining in Silicone Product Manufacturing

CNC machining is a precise process used to create molds for silicone products. CNC stands for Computer Numerical Control, where machines like mills, lathes, and routers are operated based on computer-generated instructions. In the context of silicone product manufacturing, CNC machining is mainly employed to make molds that shape the silicone material into the final product.

This article explains how CNC machining is used in the production of silicone molds, its benefits, and its role in the silicone manufacturing process.

What is CNC Machining?

CNC machining involves using computer-controlled machines to shape materials according to a digital design. The process begins by creating a 3D model of the mold in CAD (Computer-Aided Design) software. This model is then converted into a set of instructions for the CNC machine to follow in order to cut, mill, or drill the material.

CNC machines can work with a variety of materials, including metals, plastics, and rubber. In silicone manufacturing, CNC is used primarily to produce molds made from materials like steel or aluminum. These molds are then used in molding processes to form silicone products, rather than using CNC machines to directly shape the silicone.

CNC Machining’s Role in Silicone Product Manufacturing

Silicone is commonly used in products such as seals, gaskets, medical devices, and consumer goods. However, silicone requires specialized tooling for molding, as shaping silicone directly can be complex. CNC machining is used to produce the molds that define the shape of the final silicone product.

Once the mold is made, silicone is introduced into the mold cavity through processes such as liquid silicone rubber (LSR) injection molding, compression molding, or transfer molding, where it takes on the mold’s shape and cures into the final product.

Comparison of CNC Machining vs. Traditional Mold-Making Methods (Time and Cost)

Manufacturing Method	Time (Hours per Mold)	Cost (per Mold, USD)	Best for Production Scale	Precision
CNC Machining	10-20 hours	$500 – $2,000	Small to Medium Batch	High Precision
Traditional Casting	40-60 hours	$3,000 – $6,000	Large Batch Production	Medium Precision
Injection Molding	30-50 hours	$2,000 – $4,000	Medium to Large Batch	High Precision
Manual Carving	100+ hours	$1,000 – $5,000	Low Batch Production	Low Precision

Explanation:

• Time: The production time for each mold. CNC machining typically has a shorter lead time compared to traditional casting or manual carving.
• Cost: The cost per mold. CNC machining is typically less expensive for small to medium production runs, while traditional casting or injection molding has higher costs, suited for large-scale production.
• Precision: CNC machining offers high precision, which is essential for molds requiring intricate details or tight tolerances. Traditional methods often provide medium to low precision depending on the technique.

Creating Molds with CNC Machining

The process of CNC machining starts with designing the mold in CAD software. The design includes the mold’s geometry, cavities, and other features necessary for proper molding, such as vents or ejector pins. The design must consider the properties of silicone, like curing time and flow characteristics, to ensure the mold functions as intended.

Once the design is finalized, CNC milling or turning machines are used to carve the mold from a solid block of metal. CNC machines are known for their precision, ensuring that molds meet the required dimensions. After machining, the mold is typically inspected to confirm it meets the design specifications.

Types of CNC Machining for Silicone Molds

There are several CNC techniques commonly used to create molds for silicone products:

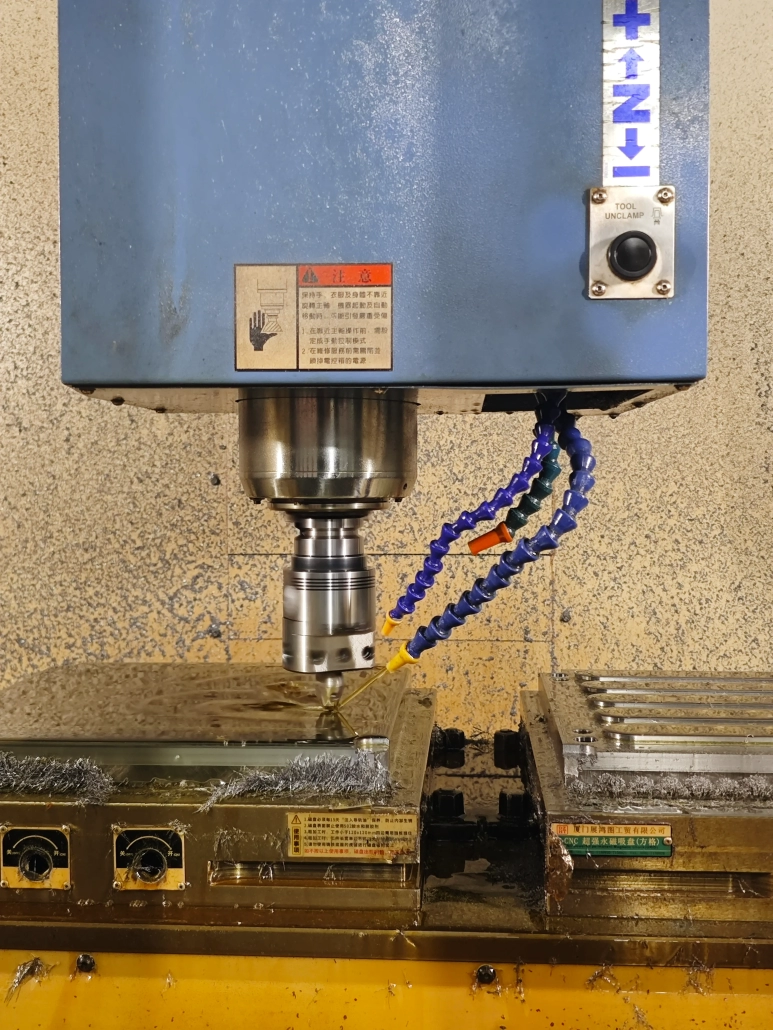

• CNC Milling: This process involves rotating cutting tools that remove material from a solid block to shape the mold. CNC milling is effective for creating detailed mold features such as cavities or undercuts.
• CNC Turning: Used for creating cylindrical molds, CNC turning involves rotating the workpiece while a cutting tool shapes it. This method is useful for molds needed for round silicone products like seals or tubes.
• Surface Finishing: After the mold is machined, surface finishing techniques such as polishing may be applied to achieve a desired texture. This is often necessary for silicone products that require smooth, high-quality surfaces.

Why CNC Machining is Used for Silicone Product Molds

CNC machining is typically used for creating molds for silicone products because of its ability to produce high-precision, repeatable, and custom-made molds. Some of the benefits of CNC machining for silicone molds include:

Advantages of CNC Machining for Silicone Product Molds

1. Precision and Accuracy

CNC machines can produce molds to tight tolerances, ensuring that the molds used in silicone manufacturing are precise. This is especially important for applications where the silicone products need to meet strict dimensional requirements, such as in medical or high-performance industries.

2. Complex Shapes and Design

CNC machining can handle complex designs and intricate features that would be difficult or impossible to create manually. Silicone molds often require detailed shapes, such as undercuts or fine cavities, which CNC machines can produce with accuracy.

3. Repeatability and Consistency

CNC machines can reproduce the same mold with the same accuracy each time, making them suitable for high-volume production. This repeatability ensures that every mold produced in a production run will be identical, which is important for maintaining consistency in the final silicone products.

4. Cost-Effective for Small to Medium Production Runs

For small to medium-sized production runs, CNC machining can be more cost-effective than other mold-making methods, which may involve more manual labor or higher tooling costs. CNC machining allows manufacturers to produce molds quickly and efficiently without the need for extensive manual work.

5. Faster Production

CNC machines operate continuously, which can speed up the mold-making process compared to traditional methods. This helps reduce lead times and can be beneficial for companies that need to produce molds quickly.

6. Material Flexibility

CNC machining can work with various materials, including aluminum and steel, which are commonly used to make molds for silicone products. Aluminum is often used for smaller production runs due to its ease of machining, while steel is used for larger, high-volume production runs due to its durability.

Challenges of CNC Machining for Silicone Product Molds

While CNC machining offers several benefits, there are some challenges involved in using it to create silicone molds.

1. High Initial Setup Costs

The cost of CNC machining can be high, especially in terms of machine setup, programming, and design. This can be a consideration for small companies or those producing molds in small quantities. However, for larger production runs or high-precision molds, the investment in CNC machining may be justified.

2. Tool Wear

CNC machining tools can wear out over time, particularly when machining hard materials like steel. This wear can affect the accuracy of the molds and may require regular maintenance or tool replacement.

3. Design Complexity

Designing molds for silicone products requires an understanding of how the silicone material will behave during the molding process. Factors such as silicone flow, curing time, and shrinkage need to be considered in the mold design. Complex designs may require more time to develop and machine, which could increase production costs.

Conclusion

CNC machining is primarily used in the creation of molds for silicone product manufacturing. The process involves using computer-controlled machines to produce molds with high precision, allowing silicone to be molded into complex shapes. CNC machining is essential for creating accurate, repeatable molds that meet the requirements for various silicone products.

While there are challenges, such as high setup costs and the need for tool maintenance, the precision and flexibility offered by CNC machining make it a valuable method for producing molds for silicone products. By understanding how CNC machining is used in the mold-making process, manufacturers can optimize their approach to silicone product production.
