Maximizing Silicone Product Quality: Key Certifications and Supplier Standards
Silicone rubber industry knowledgeTo sell silicone products, essential certifications include FDA approval for ensuring safety in contact with food or beverages, CE marking for compliance with EU standards, and REACH compliance to assure the safe use of chemical substances. When selecting a silicone supplier, crucial certifications to consider include ISO 13485 for medical device quality management, ISO 14001 for environmental management, ISO 9001 for general quality management, and Sedex certification for ethical and socially responsible practices in the supply chain.
These certifications collectively ensure product safety, regulatory compliance, quality control, environmental responsibility, and ethical sourcing throughout the manufacturing and supply chain processes.
Below is my summary of the details of these important certifications.
What is FDA Certification?
The Food and Drug Administration (FDA) is a regulatory agency within the United States Department of Health and Human Services. It is responsible for protecting and promoting public health through the regulation and supervision of food safety, dietary supplements, pharmaceuticals, vaccines, medical devices, and other products. FDA certification, particularly for silicone products, signifies compliance with stringent standards to ensure safety and suitability for use in contact with food or beverages.
Significance for Silicone Products?
FDA certification holds immense significance for silicone products, especially those intended for use in food-related applications. Whether it’s silicone molds, baking mats, kitchen utensils, or baby products, FDA approval assures consumers that the product is safe for direct contact with food. It confirms that the silicone material used in manufacturing does not pose any health risks, such as leaching harmful chemicals or contaminants into food.
How to Obtain FDA Certification Efficiently?
Material Selection: Start by choosing FDA-approved silicone materials for your product. Ensure that the silicone supplier provides certification or documentation confirming compliance with FDA regulations.
Manufacturing Processes: Implement manufacturing processes that adhere to FDA guidelines for food-contact materials. This includes maintaining cleanliness and hygiene standards in production facilities to prevent contamination.
Documentation: Prepare comprehensive documentation, including material specifications, manufacturing procedures, and quality control measures, to demonstrate compliance with FDA regulations.
Testing and Analysis: Conduct thorough testing and analysis of the silicone product to assess its safety and compliance with FDA standards. This may involve tests for migration of harmful substances, extractable substances, and overall safety for food contact.
FDA Submission: Submit the necessary documentation and test reports to the FDA for review and approval. It’s advisable to work with regulatory consultants or experts familiar with FDA processes to streamline the submission and approval process.
Compliance Maintenance: Once FDA certification is obtained, it’s essential to maintain ongoing compliance by monitoring any changes in regulations, updating documentation as needed, and conducting periodic product testing to ensure continued safety and quality.
By following these steps and ensuring adherence to FDA regulations throughout the product development and manufacturing process, you can efficiently obtain FDA certification for their custom silicone products, thereby instilling trust and confidence in consumers.
What is CE Certification?
The CE marking is a mandatory conformity mark for products sold in the European Economic Area (EEA). It indicates that a product complies with essential health, safety, and environmental protection standards set by European Union (EU) legislation. CE certification for silicone products ensures their conformity with applicable EU directives and regulations, allowing them to be freely marketed and sold within the EEA.
Significance for Silicone Products?
CE certification holds considerable significance for silicone products intended for sale within the EEA. It signifies that the product meets stringent safety and performance standards, assuring consumers of its quality and suitability for use. For silicone products, CE marking demonstrates compliance with relevant EU directives, such as those governing materials intended for food contact, electrical safety (if applicable), and environmental considerations.
Difference between CE and FDA?
Cost of Acquisition: Obtaining CE certification may involve significant costs, including testing, documentation, and compliance with various EU directives. The expenses can vary depending on the complexity of the product and the required conformity assessment procedures. Comparatively, FDA certification may have different cost structures, but generally, CE certification tends to be more expensive due to its broader scope and requirements.
Difficulty of Acquisition: CE certification can be perceived as more challenging to obtain than FDA certification due to the complexity of EU regulations and the diversity of member states’ requirements. The CE marking process often involves multiple conformity assessment procedures and may require the involvement of Notified Bodies, and accredited organizations responsible for verifying compliance. However, with thorough preparation and adherence to regulatory guidelines, obtaining CE certification can be navigated effectively.
How to Obtain CE Certification Efficiently
Identify Applicable Directives: Determine which EU directives apply to your silicone product based on its intended use, characteristics, and market placement. Common directives for silicone products may include the Machinery Directive, the Low Voltage Directive (for electrical silicone products), and the General Product Safety Directive.
Conduct Risk Assessments: Evaluate potential hazards associated with your silicone product and implement risk mitigation measures to ensure compliance with applicable safety requirements.
Documentation Preparation: Compile technical documentation demonstrating conformity with relevant EU directives, including design specifications, manufacturing processes, test reports, and risk assessments.
Conformity Assessment: Depending on the classification of your product, choose the appropriate conformity assessment procedure, which may involve self-declaration, involvement of a Notified Body, or third-party testing.
Affix CE Marking: Once compliance is confirmed, affix the CE marking to your silicone product and prepare the Declaration of Conformity, declaring that the product meets all applicable requirements.
Maintain Compliance: Regularly review and update documentation, conduct necessary testing, and stay informed about regulatory changes to ensure ongoing compliance with CE requirements.
By following these steps and adhering to EU regulations, you can efficiently obtain CE certification for their silicone products, enabling seamless market access within the European Economic Area.
What is REACH Compliance?
REACH stands for Registration, Evaluation, Authorization, and Restriction of Chemicals. It is a regulation implemented by the European Union (EU) to ensure the safe use of chemicals and protect human health and the environment. REACH compliance requires manufacturers and importers to register substances they produce or import in quantities of one ton or more per year and to assess and manage the risks associated with their use.
Significance for Silicone Products
REACH compliance is crucial for silicone products imported into or manufactured within the EU. Silicone products often contain chemical substances that may be subject to REACH regulations, such as silicone oils, curing agents, or colorants. Compliance ensures that these substances have been evaluated for their safety and potential risks, minimizing any adverse effects on human health or the environment.
For example, silicone baking mats or kitchen utensils may contain additives or colorants to enhance their properties or appearance. REACH compliance guarantees that these additives meet strict safety standards and do not contain hazardous substances that could migrate into food or pose health risks to consumers.
Difference between REACH Compliance, FDA, and CE
REACH Compliance primarily focuses on the registration and safe use of chemical substances, ensuring they meet specific safety standards and do not pose risks to human health or the environment. It applies to all products containing chemical substances, including silicone products, imported into or manufactured within the EU.
FDA certification, on the other hand, primarily applies to products intended for use in contact with food or beverages within the United States. It ensures that these products meet stringent safety and quality standards set by the Food and Drug Administration.
CE marking indicates compliance with EU health, safety, and environmental protection standards for products marketed within the European Economic Area (EEA). While it encompasses various product categories, it does not specifically address the use of chemical substances like REACH compliance.
How to Obtain REACH Compliance Efficiently?
Substance Registration: Identify and register all relevant chemical substances used in the manufacturing process, ensuring compliance with REACH registration requirements.
Substance Evaluation: Conduct thorough assessments and risk analyses for registered substances to identify any potential hazards or risks associated with their use.
Risk Management: Implement appropriate risk management measures to minimize or eliminate identified risks, such as substitution with safer alternatives or implementing control measures during manufacturing.
Documentation: Prepare comprehensive documentation, including chemical safety reports, exposure scenarios, and compliance declarations, to demonstrate compliance with REACH regulations.
Collaboration: Work closely with suppliers, regulatory experts, or consultants familiar with REACH requirements to navigate the compliance process efficiently and effectively.
Ongoing Compliance: Stay informed about any updates or amendments to REACH regulations and ensure ongoing compliance by updating documentation and procedures as necessary.
By following these steps and prioritizing compliance with REACH regulations throughout the product development and manufacturing process, you can efficiently obtain REACH compliance for their silicone products.
Supplier Factory Certification Requirements
What is ISO 9001?
ISO 9001 is an internationally recognized standard for quality management systems (QMS) developed by the International Organization for Standardization (ISO). It provides a framework for organizations to establish and maintain effective quality management practices, ensuring consistency in product and service delivery, customer satisfaction, and continual improvement.
Significance for Silicone Products and Manufacturers
ISO 9001 certification holds significant importance for manufacturers of silicone products. It signifies that the manufacturer has implemented robust quality management practices throughout their operations, from design and development to production, distribution, and customer service.
For silicone products, ISO 9001 certification ensures adherence to consistent quality standards, meeting customer expectations, and enhancing product reliability and performance.
How Manufacturers Can Obtain ISO 9001 Certification Efficiently
Understand Requirements: Familiarize yourself with the requirements of ISO 9001 and how they apply to your organization’s processes and activities. This may involve conducting a gap analysis to identify areas for improvement.
Establish QMS: Develop and implement a quality management system (QMS) that aligns with ISO 9001 requirements. This includes defining quality objectives, documenting procedures, and establishing processes for monitoring and measuring performance.
Employee Training: Provide training and awareness programs to employees to ensure they understand their roles and responsibilities within the QMS and are equipped to contribute to its effective implementation.
Documentation: Prepare documentation, including quality manuals, procedures, work instructions, and records, to demonstrate compliance with ISO 9001 requirements.
Internal Audits: Conduct internal audits regularly to assess the effectiveness of the QMS, identify non-conformities, and implement corrective and preventive actions as necessary.
Management Review: Hold periodic management reviews to evaluate the performance of the QMS, identify opportunities for improvement, and ensure its continued suitability, adequacy, and effectiveness.
Certification Audit: Engage an accredited certification body to conduct a certification audit of your QMS. During the audit, demonstrate compliance with ISO 9001 requirements and address any findings or non-conformities identified by the auditors.
Continuous Improvement: Commit to continuous improvement by monitoring customer feedback, analyzing performance data, and implementing corrective and preventive actions to enhance the effectiveness of the QMS.
By following these steps and dedicating resources to establishing and maintaining an effective QMS, manufacturers of silicone products can efficiently obtain ISO 9001 certification.
What is ISO 13485?
ISO 13485 is an internationally recognized standard for quality management systems (QMS) specific to the medical device industry. Developed by the International Organization for Standardization (ISO), ISO 13485 sets out requirements for organizations involved in the design, development, production, installation, and servicing of medical devices and related services. It emphasizes the importance of meeting regulatory requirements, ensuring product safety and efficacy, and maintaining a focus on customer satisfaction.
Significance for Silicone Products and Manufacturers
ISO 13485 certification holds paramount importance for manufacturers of silicone products intended for medical or healthcare applications. It demonstrates that the manufacturer has established and maintains an effective QMS tailored to the unique requirements of the medical device industry. For silicone medical devices, such as implants, catheters, or seals, ISO 13485 certification ensures compliance with regulatory standards, meticulous quality control, and adherence to stringent safety and performance requirements.
How Manufacturers Can Obtain ISO 13485 Certification Efficiently?
Regulatory Compliance: Familiarize yourself with relevant regulatory requirements for medical devices in the target markets. This may include regulations set forth by the FDA in the United States or the European Medical Device Regulation (MDR) in the European Union.
Establish QMS: Develop and implement a quality management system (QMS) aligned with ISO 13485 requirements and applicable regulatory standards. This includes defining processes for design and development, risk management, production, control of non-conforming products, and post-market surveillance.
Product Development: Implement design and development processes that prioritize safety, efficacy, and compliance with regulatory requirements. Document design inputs, outputs, verification, and validation activities to demonstrate product conformity.
Supplier Control: Establish procedures for evaluating and selecting suppliers of raw materials, components, and services critical to the quality and safety of silicone medical devices. Ensure suppliers comply with relevant regulatory requirements and quality standards.
Documentation: Prepare comprehensive documentation, including quality manuals, procedures, work instructions, and records, to demonstrate compliance with ISO 13485 requirements and regulatory standards.
Internal Audits: Conduct internal audits regularly to assess the effectiveness of the QMS, identify areas for improvement, and address non-conformities.
Certification Audit: Engage an accredited certification body specializing in medical device QMS certification to conduct a certification audit. Demonstrate compliance with ISO 13485 requirements and address any findings or non-conformities identified during the audit process.
Continuous Improvement: Commit to continuous improvement by monitoring performance metrics, analyzing data, and implementing corrective and preventive actions to enhance the effectiveness of the QMS and ensure ongoing compliance.
By following these steps and dedicating resources to establishing and maintaining an effective QMS tailored to the medical device industry, manufacturers of silicone products can efficiently obtain ISO 13485 certification.
What is ISO 14001?
ISO 14001 is an internationally recognized standard for environmental management systems (EMS) developed by the International Organization for Standardization (ISO). It provides a framework for organizations to establish, implement, maintain, and continually improve environmental management practices. ISO 14001 helps organizations identify and mitigate environmental impacts, comply with applicable environmental regulations, and demonstrate a commitment to sustainability.
Significance for Silicone Products and Manufacturers
ISO 14001 certification holds significant importance for manufacturers of silicone products, as it demonstrates a commitment to environmental sustainability and responsible resource management throughout the product lifecycle. For example, silicone manufacturing processes may involve the use of raw materials, energy, and water, as well as the generation of waste and emissions.
How Manufacturers Can Obtain ISO 14001 Certification Efficiently？
Environmental Policy: Develop and communicate an environmental policy that outlines the organization’s commitment to environmental protection, compliance with applicable regulations, and continual improvement of environmental performance.
Environmental Aspect Identification: Identify and assess the environmental aspects and impacts associated with the organization’s activities, products, and services. This may include evaluating the use of raw materials, energy consumption, emissions, waste generation, and pollution prevention measures.
Legal Compliance: Ensure compliance with relevant environmental laws, regulations, and other requirements applicable to the organization’s operations. Stay informed about changes in environmental regulations and update procedures accordingly.
Objectives and Targets: Establish environmental objectives and targets aligned with the organization’s environmental policy and significant environmental aspects. Set measurable goals for reducing environmental impacts, improving resource efficiency, and preventing pollution.
Environmental Management Programs: Develop and implement environmental management programs to achieve the organization’s environmental objectives and targets. This may involve implementing initiatives such as energy conservation measures, waste reduction programs, and pollution prevention strategies.
Training and Awareness: Provide training and awareness programs to employees to ensure they understand their roles and responsibilities in achieving environmental objectives and complying with environmental management procedures.
Documentation and Records: Maintain documentation of environmental policies, procedures, programs, and records to demonstrate compliance with ISO 14001 requirements and facilitate effective environmental management.
Internal Audits: Conduct regular internal audits to assess the effectiveness of the environmental management system, identify areas for improvement, and address non-conformities.
Certification Audit: Engage an accredited certification body to conduct an external audit of the environmental management system. Demonstrate compliance with ISO 14001 requirements and address any findings or non-conformities identified during the audit process.
Continuous Improvement: Commit to continual improvement of the environmental management system by monitoring performance indicators, analyzing data, and implementing corrective and preventive actions to enhance environmental performance and achieve sustainability goals.
By following these steps and dedicating resources to establishing and maintaining an effective environmental management system, manufacturers of silicone products can efficiently obtain ISO 14001 certification.
Sedex
This certification not only demonstrates a commitment to environmental responsibility but also enhances credibility, competitiveness, and stakeholder confidence in the organization’s environmental performance.
In addition to ISO certifications, other certifications such as Sedex also play a significant role in supplier selection processes. While ISO certifications primarily focus on quality management systems, environmental management systems, and specific industry standards, Sedex certification addresses social compliance and ethical business practices within the supply chain.
Sedex, which stands for Supplier Ethical Data Exchange, provides a platform for businesses to share information on labor standards, health and safety, environmental practices, and ethical sourcing with their supply chain partners.
By selecting suppliers with Sedex certification, manufacturers of silicone products can ensure that their supply chain partners adhere to ethical labor practices, provide safe working conditions, and demonstrate transparency in their business operations.
Integrating Sedex certification into supplier selection processes complements ISO certifications, offering a comprehensive approach to sourcing suppliers that align with the organization’s values and objectives.
Additional Considerations:
Material Testing
Material testing is a critical aspect of ensuring the quality and performance of custom silicone products. It involves conducting comprehensive tests to assess various properties of the silicone material, including tensile strength, elongation, tear resistance, hardness, and chemical resistance.
Tensile Strength: This test measures the maximum stress a material can withstand without breaking when subjected to tension. It is essential for assessing the durability and integrity of silicone products, particularly those designed for high-stress applications.
Elongation: Elongation testing determines the ability of the silicone material to stretch or elongate before breaking. It is crucial for applications where flexibility and elasticity are required, such as silicone seals or gaskets.
Tear Resistance: The tear resistance test evaluates the material’s resistance to tearing or propagation of a pre-existing cut or tear. It is vital for assessing the durability and longevity of silicone products, especially those subjected to mechanical stress or abrasion.
Hardness: Hardness testing measures the material’s resistance to indentation or penetration by a harder object. It helps determine the stiffness or softness of the silicone material, which is essential for achieving the desired tactile feel or performance characteristics in the final product.
Chemical Resistance: Silicone products intended for use in harsh chemical environments or applications require testing to assess their resistance to chemical exposure and degradation. This ensures the product’s longevity and performance under challenging conditions.
Intellectual Property Protection
Protecting your design and intellectual property rights is crucial for preventing unauthorized replication or infringement by competitors. Various forms of intellectual property protection, including patents, trademarks, and copyrights, offer legal recourse against infringement and provide exclusive rights to the creator.
Patents: Patents grant inventors exclusive rights to their inventions, preventing others from making, using, selling, or importing the patented invention without permission. Obtaining a patent for your custom silicone product can safeguard your innovative features, functionalities, or manufacturing processes.
Trademarks: Trademarks protect brand names, logos, symbols, or slogans associated with a product or business. Registering a trademark for your custom silicone product’s brand identity helps distinguish it from competitors and establishes brand recognition and trust among consumers.
Copyrights: Copyrights protect original works of authorship, including artistic, literary, or creative expressions fixed in a tangible medium. While copyrights may not directly apply to the physical form of a silicone product, they can protect accompanying artwork, packaging designs, or instructional materials associated with the product.
Regulatory Updates
Staying informed about regulatory changes or updates relevant to your product category is essential for maintaining compliance and mitigating potential risks. Regulatory requirements may evolve over time due to advancements in technology, changes in consumer preferences, or emerging safety concerns.
Regularly monitor regulatory agencies, industry associations, or trade publications for updates on relevant standards, guidelines, or directives applicable to custom silicone products.
Establish clear communication channels with regulatory authorities or legal experts specializing in product compliance to seek guidance on navigating regulatory complexities and ensuring adherence to current requirements.
Proactively assess the potential impact of regulatory changes on your product design, manufacturing processes, or marketing strategies, and implement necessary adjustments to maintain compliance and market competitiveness.
Conclusion
In conclusion, while certifications such as FDA, CE, REACH, ISO 13485, ISO 14001, ISO 9001, and Sedex are essential for ensuring compliance, practitioners should prioritize utilizing these certifications as tools for enhancing the quality of silicone products and supplier factories.
Beyond mere compliance, the focus should be on leveraging certifications to drive continuous improvement, uphold stringent quality standards, promote ethical sourcing, and minimize environmental impact.
By embedding a culture of excellence and responsibility within the organization and supply chain, practitioners can not only meet regulatory requirements but also deliver superior silicone products that inspire trust and satisfaction among consumers while contributing to a sustainable future.
Introduction and Application of Liquid Silicone Rubber (LSR)
Silicone rubber industry knowledgeLSR material is an unavoidable topic for anyone in the silicone industry. It’s a widely used high-performance material. In this article, I’ll help you navigate through all there is to know about LSR, clearing up any questions you might have.
Material properties of LSR
High-Temperature Performance
Liquid Silicone Rubber (LSR) stands out for its exceptional high-temperature resistance. Unlike many other elastomers, LSR maintains its flexibility and mechanical properties over a wide temperature range. This silicone-based material can withstand continuous exposure to temperatures as high as 200°C (392°F) and for shorter periods, can endure even higher temperatures without degrading. Its thermal stability is a result of the silicone polymer’s chemical structure, which provides strong bonds that are not easily broken down by heat. This characteristic is particularly beneficial in applications requiring materials that must perform reliably in hot environments or when subjected to sudden temperature changes. The molecular stability of LSR under heat also means that it does not readily swell or change its properties, ensuring consistent performance and longevity of the products made from it.
Biocompatibility
LSR is highly valued for its biocompatibility. This makes it an ideal choice for medical applications, where materials must not only be safe for use in or on the human body but also meet stringent regulatory standards. The biocompatibility of LSR is derived from its purity and the inert nature of silicone, which reacts minimally with human tissue and bodily fluids. This non-reactivity is crucial for medical implants, devices, and equipment that are in contact with the body for extended periods. Additionally, LSR can be sterilized by various methods, including steam autoclaving, ethylene oxide treatment, and gamma radiation, without losing its properties or becoming harmful, further enhancing its suitability for medical use.
Chemical Stability
The chemical stability of LSR is another key feature. It is highly resistant to degradation by chemicals, including oils, solvents, and acids. This resistance is due to the silicone polymer’s non-polar, hydrophobic backbone, which repels water and prevents swelling, and its ability to maintain structural integrity when exposed to a wide variety of chemicals. Such chemical resilience makes LSR an excellent material for seals, gaskets, and components in chemical processing applications or in environments where exposure to harsh substances is common. It ensures that products made from LSR continue to perform their function without breakdown or compromise, even in aggressive chemical environments.
Electrical Properties
LSR’s electrical properties are also noteworthy. It is an excellent insulator, with a high dielectric strength, low electrical conductivity, and good thermal conductivity. These properties make it ideal for use in electrical insulation, protective coatings, and components where electrical insulation is critical. The inherent flexibility of LSR, combined with its insulating capabilities, allows for the design of complex shapes and forms that can protect sensitive electrical components from environmental factors, mechanical stress, and high temperatures. The durability of LSR in various conditions ensures that it remains an effective insulator over the product’s lifetime, making it a reliable choice for electrical and electronic applications.
Different LSR formulations
Basic Recipe
Basic formulations of liquid silicone rubber (LSR) are the most common type on the market. These formulations mainly consist of a polydimethylsiloxane (PDMS) matrix, fillers (such as silica), and vulcanizing agents. This formulated LSR has excellent elasticity, chemical resistance, and electrical insulation. Their ability to maintain physical properties over a wide temperature range makes them suitable for a variety of standard applications such as seals and insulation. The development of the base formulation focuses on improving the versatility and economy of the material.
High Strength LSR Formulation
Enhanced Durability: High-strength LSR formulations are engineered by incorporating reinforcing fillers, such as fumed silica, to enhance the mechanical properties of silicone rubber. This results in a material that not only maintains the inherent flexibility and chemical resistance of LSR but also exhibits superior tensile strength and durability. Such formulations are ideal for applications requiring robust performance under stress, including seals and gaskets in automotive and industrial settings. The precise control over the filler content and distribution within the silicone matrix is crucial for achieving the desired strength without compromising the material’s elasticity.
High Transparency LSR Formulation
Optical Clarity: High-transparency LSR formulations are designed to maximize light transmission while minimizing distortion, making them perfect for optical and lighting applications. This is achieved by minimizing the inclusion of additives that can scatter light, such as certain catalysts and fillers, and optimizing the polymer’s crosslinking structure to reduce haze. The result is a silicone that combines the durable, flexible, and temperature-resistant qualities of LSR with exceptional clarity. Applications range from LED encapsulants to lenses, where material purity and optical performance are paramount.
High-Temperature LSR Formulation
Thermal Resilience: To enhance thermal stability, high-temperature LSR formulations incorporate heat-resistant additives and crosslinkers that enable the silicone to withstand extreme temperatures without degradation. These formulations typically extend the operational temperature range of LSR, making it suitable for applications in harsh thermal environments, such as under-the-hood automotive components, industrial machinery, and cookware. Adjustments in polymer chain length and crosslink density play a significant role in achieving the desired balance between thermal resistance and maintaining the material’s flexibility and other mechanical properties.
Biocompatible LSR Formulation
Medical-Grade Purity: Biocompatible LSR formulations are meticulously designed to meet rigorous medical standards, including USP Class VI and ISO 10993. This involves the careful selection of raw materials and processing conditions to eliminate contaminants and ensure the silicone’s compatibility with human tissue. Additives that enhance biostability, such as platinum catalysts for curing without by-products, are key to these formulations. The result is a material that is not only safe for prolonged contact with skin and mucous membranes but also stable and inert in a variety of sterilization processes, making it indispensable in medical devices, implants, and pharmaceutical applications.
Each of these formulations highlights the adaptability and technical sophistication of LSR, underscoring its role as a critical material in advancing technology across a spectrum of industries.
Manufacturing and processing of LSR
Manufacturing and processing liquid silicone rubber (LSR) requires a nuanced understanding of its unique properties and the demands of the end-use application. LSR’s manufacturing begins with a precision mixing process. The two-part silicone components—A and B—are mixed under strict conditions to ensure homogeneity. This step is critical because any deviation can affect the material’s final properties. Once mixed, the LSR is ready for injection molding, a preferred method for its ability to fill complex molds with high precision and repeatability.
The injection molding process for LSR differs significantly from that of traditional thermoplastics. Due to LSR’s low viscosity, the equipment used must control the material’s flow accurately to prevent flash and ensure the mold fills correctly. Specialized molding machines maintain the precise temperature and pressure necessary for curing LSR. The process parameters, including injection speed, mold temperature, and cure time, are finely tuned based on the specific LSR formulation and part design to achieve optimal results.
Post-processing of LSR parts is equally important to achieve the desired finish and functionality. Techniques such as post-curing can enhance the material’s properties, including its mechanical strength and chemical resistance. Additionally, secondary operations like slitting, drilling, or surface treatment may be required to meet the specifications of the final product.
Understanding these manufacturing nuances is essential for engineers and designers working with LSR. It allows for the exploitation of the material’s benefits while navigating its challenges, ensuring the successful integration of LSR components in various applications.
Future Outlook
The future of Liquid Silicone Rubber (LSR) points towards groundbreaking innovations and broader applications. Advances in material science will likely yield LSR formulations with enhanced properties, such as improved thermal resistance and mechanical strength, catering to demanding environments like aerospace and deep-sea exploration. The development of bio-compatible and eco-friendly LSRs will expand its use in medical implants and sustainable products. Integration with smart technology, such as conductive LSRs, will open new avenues in wearable devices and flexible electronics, marking a significant leap in both functionality and application diversity.
Comparing Silicone Injection Molding and Silicone Transfer Molding
Silicone rubber industry knowledgeHow do Silicone Transfer Molding and Silicone Injection Molding stand in comparison to each other? In the silicone manufacturing industry, these two techniques are pivotal, yet they often get confused.
As someone entrenched in this field, I aim to clarify and compare them in this article, giving you a complete picture of their distinct characteristics, advantages, and applications.
Silicone Transfer Molding
Silicone transfer molding, a well-established technique in the manufacturing industry, can shape silicone into various products.
First, the placement of a piece of uncured silicone rubber into a portion of the mold is known as the transfer pot. Once the silicone is in the transfer pot, the mold closes, and the transfer process begins. This is where the name ‘transfer molding’ comes from.
A plunger then applies pressure, pushing the silicone through sprues and runners into the cavity of the mold. It’s important to note that the mold is typically heated. This heating process activates the silicone’s curing mechanism, transforming it from a pliable state to a solid, yet flexible, final product.
When the silicone fills the mold and curing occurs, the mold opens, and the finished part is removed. Excess material, known as flash, is often trimmed from the product. This stage demands precision to maintain the integrity of the molded part. The entire process, from the placement of silicone in the transfer pot to the demolding of the finished product, is relatively quick, but cycle times can vary based on the size and complexity of the part.
Process Details
Control of Temperature & Pressure
The mold temperature must be carefully managed to ensure proper curing of the silicone. This temperature is usually set between 300°F to 400°F, depending on the silicone type and the product requirements.
Too much heat can cause the silicone to degrade, while insufficient heat may lead to incomplete curing.
The right amount of pressure ensures that silicone fills the entire mold cavity, reaching all intricate areas without creating voids or air pockets.
Curing Time
Curing time varies based on the thickness of the part and the type of silicone used. Thicker parts and those with more intricate designs generally require longer curing times to ensure that the silicone sets properly throughout the entire part.
Material Flow
The material flow within the mold is a subtle yet significant detail. The design of the mold, including the placement of sprues and runners, determines how the silicone flows into the mold cavity. An optimal flow reduces the risk of air pockets and ensures uniform distribution of material, which is helpful for parts with complex geometries or tight dimensional tolerances.
Tooling design
The tooling mold must be precision-engineered to accommodate the silicone’s expansion and contraction during the heating and cooling phases. The mold also needs to facilitate easy removal of the finished product without damaging it, which can be a challenge for intricate designs or delicate parts.
Advantages
One of the primary advantages of silicone transfer molding is its cost-effectiveness, especially for medium-volume production runs. This process allows for the manufacturing of complex shapes and intricate designs that might be challenging or impossible to achieve through other molding methods.
Another significant advantage is the high level of precision and consistency it offers. Since the silicone is pressed into the mold, it fills the cavities, replicating the mold’s shape and surface texture accurately. This results in high-quality parts with excellent dimensional accuracy.
The process also allows for the use of multiple cavities in a single mold. This means that multiple parts can be produced in one cycle, enhancing production efficiency. Furthermore, the ability to use inserts is another benefit. Metal or other materials can be placed in the mold, and the silicone is molded around these inserts, integrating them into the final product. This is particularly useful in applications where the silicone part needs to interact with other materials.
Disadvantages
Despite its advantages, silicone transfer molding has some limitations. One of the main disadvantages is the slower cycle times compared to other methods like injection molding. The process of placing the silicone into the transfer pot, curing, and demolding is more time-consuming, which can be a significant factor in large-scale production environments.
Material waste is another concern. The transfer process often results in excess material, known as sprues and runners, which connect the transfer pot to the mold cavity. This excess material must be trimmed away and discarded, or recycled when possible. This not only adds an extra step to the production process but also leads to material inefficiency.
The initial setup and tooling costs can be relatively high. Custom molds need to be designed and manufactured, which requires a significant upfront investment. This cost is often justified for medium or high-volume production but can be prohibitive for small runs or prototype development.
Another limitation is the size of the parts that can be produced. Transfer molding is generally more suited to small to medium-sized parts. Producing large parts can be challenging due to the limitations in the size of the transfer pot and the pressure required to fill larger molds evenly.
In terms of design flexibility, while transfer molding is excellent for complex shapes, it has limitations when it comes to extremely intricate or thin-walled designs. These designs might not be fully realized due to the pressure and flow characteristics of the silicone during the molding process.
Lastly, the process requires skilled operators and precise control of various parameters, such as temperature, pressure, and curing time. This necessitates a higher level of expertise and can result in a steeper learning curve for new staff or when setting up new production lines.
Silicone Injection Molding
Silicone injection molding is another process in modern manufacturing, especially for producing high-quality, precision silicone parts.
The equipment central to this process is the injection molding machine, specifically designed to handle and process silicone materials. The internal structure of an injection molding machine is usually more complex than that of compression molding (including transfer molding). These machines are engineered to heat the silicone to a precise temperature, ensuring it reaches the correct consistency for molding.
Tooling molds of injection molding are typically made from metals and are designed based on the specifications of the final product.
Then there is the production process. Initially, the silicone material is heated to a fluid state, which allows it to be injected into the mold. Once the silicone is heated, it is injected into the preheated mold at high pressure. This high pressure is necessary to ensure the silicone fills the entire mold cavity and reaches all intricate areas of the mold.
The operator sets up the machine’s program, and the silicone material is transferred directly into the mold through the pipe. This process is completed inside the injection molding machine. The temperature must be carefully controlled to ensure the silicone is fluid enough to fill the mold cavity but not so hot as to degrade the material’s quality.
After the injection, the silicone cools and solidifies within the mold, taking on the shape and details of the mold design. Cooling must be done at a controlled rate to prevent shrinkage or warping of the material.
Advantages
The advantages of silicone injection molding are numerous.
Firstly, it allows for high production efficiency. The process is capable of producing a large volume of parts in a relatively short amount of time, making it ideal for mass production. Another significant advantage is the consistency and quality of the products. Due to the automated and controlled nature of the process, each part produced is uniform in quality and dimensions, which is crucial for industries requiring high precision, like medical devices or automotive components.
Additionally, this process often requires minimal post-processing. The parts produced usually have a high-quality finish straight out of the mold, reducing the need for additional finishing steps such as trimming or polishing. This reduction in post-processing not only saves time but also reduces the overall production cost.
Disadvantages
Despite its numerous benefits, silicone injection molding does have some drawbacks. The most notable is the high initial cost. The equipment required for silicone injection molding, including the injection molding machines and precision molds, represents a significant investment. This cost can be a barrier for smaller companies or startups.
Another disadvantage is the ongoing maintenance required for the machinery. Regular maintenance is essential to ensure the machines operate efficiently and reliably, but it adds to the operational costs. Moreover, the process requires skilled operators and technicians who understand the intricacies of silicone injection molding, adding to labor costs.
Process Comparison
The choice between silicone transfer molding and silicone injection molding depends on factors like production size, complexity of the parts, precision needs, and budget.
Performance Comparison
Silicone injection molding and silicone transfer molding differ significantly in performance. Injection molding is known for its high precision. It consistently produces parts with uniform dimensions, ideal for intricate designs. This makes it suitable for products with complex details.
However, silicone transfer molding, while also producing quality parts, might have slight variations in dimensions, especially for complex shapes.
In terms of production speed, silicone injection molding is generally faster. This is because it’s an automated process with shorter cycle times. It can produce more parts in a shorter period, which is beneficial for large-scale manufacturing.
On the other hand, silicone transfer molding is typically slower. This is due to its more manual process and longer curing times, making it less efficient for high-volume production.
Cost-Benefit Analysis
The costs of both processes are an important factor. Silicone injection molding usually requires a higher initial investment. The machinery and equipment are more expensive. But, this cost can be offset over time by faster production rates and lower labor costs. This process also tends to waste less material, which is a cost-saving factor in large-volume production.
Silicone transfer molding might have lower initial costs. But, it can lead to higher costs in the long run. This is because of higher labor requirements and more material handling. There’s also typically more waste produced, which can add to the costs, especially in large quantities.
Applicability Analysis
Choosing between the two methods depends on the project’s needs. Injection molding is often the choice for large-scale production of parts that need high precision. This method is efficient for producing complex shapes and is widely used in industries like medical, automotive, and aerospace.
Silicone transfer molding, on the other hand, is more suitable for smaller production runs or less complex parts. Its lower setup costs and adaptability make it a good option for custom parts or products where less precision is acceptable. This method is commonly used for making seals, gaskets, and keypads.
Each has distinct advantages, making them appropriate for different applications in silicone part manufacturing.
Silicone Product Development Guide – Silicone Menstrual Cup
Consumer ProductsMenstrual cups, particularly silicone-based ones, are increasingly popular in Western markets. Brands like DivaCup, Lunette, and Mooncup exemplify the rising consumer interest in sustainable and health-conscious personal care options.
For manufacturers, the menstrual cup market offers a significant opportunity. It’s a sector where quality and innovation can thrive amid growing consumer acceptance. While the market is becoming more familiar with these products, there remains ample space for new, differentiated offerings.
Manufacturers looking to Enter this market should aim to understand and adapt to its evolving dynamics, focusing on consumer needs and preferences. So how should we develop a distinctive menstrual cup product? Next, I will give my thoughts.
Product advantages of silicone menstrual cup
If we want to develop a silicone menstrual cup, we must first know why it is popular. In other words, we must understand the advantages of this product.
Compared to other menstrual personal care products
Silicone menstrual cups offer several advantages over traditional menstrual products like sanitary pads and tampons.
Unlike pads and tampons, which are typically used once and then discarded, silicone menstrual cups are reusable and can last for several years with proper care. This not only makes them more environmentally friendly, reducing waste, but also more cost-effective in the long run.
Another advantage of silicone menstrual cups is the health aspect. They are generally considered safer than tampons, which can cause dryness and leave fibers behind. Menstrual cups also carry a lower risk of Toxic Shock Syndrome (TSS), a rare but serious condition associated with tampon use. Furthermore, silicone is hypoallergenic and does not contain the chemicals and fragrances found in many pads and tampons, making it a safer choice for sensitive skin.
Compared with menstrual cups made of other materials
When compared to menstrual cups made from other materials, silicone cups stand out for their durability and flexibility. Silicone maintains its shape and flexibility over a wide range of temperatures, making it ideal for the varying conditions it will encounter. Its durability ensures that the cup can be folded and manipulated for insertion without losing its integrity. High-quality medical-grade silicone is less likely to cause irritation or allergic reactions, unlike rubber or latex cups.
Silicone’s non-porous surface also makes it easier to clean and less likely to harbor bacteria, an essential factor for a product used in such a sensitive area. Its smooth texture makes insertion and removal more comfortable compared to cups made of stiffer materials.
Analyzing Customer Needs
The first step in designing an effective silicone menstrual cup is a thorough analysis of customer needs. Common investigation methods include surveys, focus groups, and market research. understanding the age range, lifestyle, and preferences of potential users helps tailor the product.
Design Responses to Customer Needs
The size and shape of menstrual cups are not one-size-fits-all. Different users have different anatomies and flow levels, necessitating a range of sizes and shapes. Some may prefer a smaller cup for ease of insertion, while others might need a larger capacity for heavier flow days. The design must accommodate these variations without compromising on comfort or effectiveness.
The Survey found younger users may prioritize discretion and ease of use, while older users might focus on comfort and capacity. Based on it, product design can be specifically tailored. For younger users who favor discretion and ease of use, the design can include features like a more flexible material for easier insertion and a compact shape for portability. For older users, who might prioritize comfort, the design can focus on ergonomic shapes that conform to the body comfortably and offer varying sizes to accommodate different flow levels.
Broadening the Appeal with Variety
You can also focus your survey on users’ pursuit of personalization. While some users might prefer the classic, medical look of clear silicone, others may find colored cups more appealing or less clinical. Offering a range of colors allows users to choose according to their personal style, making the product more appealing to a broader audience.
Innovative Features for Enhanced Usability
Ease of cleaning and maintenance is a universal concern among potential users. In response, the design can incorporate a smooth, seamless surface, reducing the effort required for cleaning.in addition, features like a textured base or a ring stem can be introduced, catering to user preferences for easier removal without compromising hygiene.
Linking customer needs directly to product design ensures that the silicone menstrual cups not only meet the basic requirements but also address specific preferences and concerns.
Medical-Grade Liquid Silicone Rubber (LSR)
The recommended material is medical-grade liquid silicone rubber (LSR), specifically designed for its compatibility with the human body and its ability to meet medical standards. It is a high-purity, platinum-cured silicone that is non-toxic and hypoallergenic. Its curing process doesn’t produce any by-products, making it safer for intimate contact. LSR maintains its properties over time, even with regular sterilization and use.
Specific Shore Hardness
For menstrual cups, a Shore A Hardness in the range of 40 to 60 is ideal. This range provides the right balance of flexibility and firmness. A hardness level around 50 Shore A is commonly used, as it ensures the cup is soft enough for comfort but firm enough to provide a leak-proof seal.
Compliance with Standards and Regulations
The silicone material should comply with relevant international standards and regulations, such as the U.S. Food and Drug Administration (FDA) regulations for medical devices, and the European Union’s REACH and RoHS directives. These standards ensure that the silicone is safe for prolonged contact with the body and is free from hazardous substances.
Sourcing the silicone material
To maintain high standards of quality and reliability, manufacturers are advised to procure silicone from reputable and well-established suppliers (like Wacker). Established suppliers have stringent quality control processes, ensuring the material meets all necessary standards. These suppliers not only guarantee the quality of the silicone but also provide traceability.
Manufacturing of silicone menstrual cups
The manufacturing process of silicone menstrual cups is meticulous, beginning with the selection of a reliable silicone manufacturer. The chosen manufacturer must adhere to strict quality and safety standards, notably ISO 13485. This standard is specific to medical devices, ensuring a consistent design, production, and delivery of products that meet both customer and regulatory requirements.
The creation of precise tooling is a critical component in producing high-quality silicone menstrual cups. Tooling refers to the design and fabrication of the molds used in the injection molding process. At this stage, the quality of the mold directly impacts the quality of the final product.
Tooling
The tooling process begins with a detailed design phase, where engineers create a mold design that accurately represents the desired dimensions and features of the menstrual cup. This design must account for factors like the cup’s size, shape, flexibility, and any additional features like grips or ribs. Advanced computer-aided design (CAD) software is often used to create a precise and detailed representation of the mold.
Once the design is finalized, the mold is fabricated using high-precision machining tools. Materials used for mold-making are typically durable metals like steel or aluminum, chosen for their ability to withstand the high pressures and temperatures of the injection molding process. Even minor deviations can lead to product defects or inconsistencies.
Liquid silicone injection molding
The process moves to the actual production phase. The mainstream manufacturing method of silicone menstrual cups is injection molding.. This method is favored for its precision and ability to produce consistent, high-quality products. Injection molding involves heating the medical-grade liquid silicone rubber (LSR) to a liquid state and then injecting it into a precisely designed mold. This mold defines the shape and size of the menstrual cup, including intricate details like grip rings or stems.
The precision of injection molding allows for the production of menstrual cups that meet exact specifications for size, thickness, and texture. The process is highly controlled, ensuring that each cup has uniform quality and performance characteristics. After molding, the cups undergo a curing process. This step is giving the menstrual cup its final properties like flexibility and durability.
Post-production, each menstrual cup should subjected to rigorous quality checks. These checks are in line with the standards set by ISO 13485. They ensure that every cup is free from defects, meets the required hardness specifications, and is biocompatible. Quality control measures may include visual inspections, leak tests, and material consistency checks.
The role of packaging and branding serves not only as a protective measure for the product but also as a key element in marketing and customer perception. Thoughtful packaging and cohesive branding can significantly enhance the value and appeal of the product, making it stand out in a competitive market.
Packaging and Branding
Packaging serves multiple functions; it protects the product, provides important information, and communicates the brand’s values. For silicone menstrual cups, packaging should ensure the product’s integrity during shipping and handling. It also needs to be informative, providing clear instructions on usage, care, and storage. Environmentally friendly packaging resonates with the eco-conscious values of menstrual cup users.
Branding and Market Positioning
Branding goes beyond just a logo or a color scheme; it’s about the story and values the company wants to communicate. A strong brand identity can create a sense of trust and reliability. For menstrual cups, this might involve emphasizing aspects like health, environmental sustainability, and female empowerment. Effective branding communicates these values across all touchpoints with the customer, from packaging and marketing materials to digital presence.
Manufacturer’s Solution-Oriented Approach
Manufacturers can play a significant role in this aspect by offering customizable packaging and branding solutions. By working closely with their clients, silicone menstrual cup manufacturers can provide options that align with the client’s brand identity and marketing strategy. This might include offering a range of packaging designs, assistance with regulatory compliance labeling, and options for custom branding on the product itself.
Conclusion
In conclusion, the development of a high-quality, competitive silicone menstrual cup is not a simple task. It is a collaborative effort that requires a deep understanding of the market, a strong partnership with silicone manufacturers, and a comprehensive approach to product design and marketing. With these elements in place, manufacturers can create a product that not only meets but exceeds market expectations, establishing a strong presence in the growing field of eco-friendly and health-conscious personal care products.
Silicone Product Development Guide – Silicone Nasal Aspirator
Consumer Productscomprehensive guide on developing silicone nasal aspirators, covering design, production, branding, and expanding sales channels for success in the baby care market
The baby care market is growing and changing. Have you thought about this? How can you seize these opportunities? One way is by developing innovative products. I’m Erique, CEO of NEWTOP SILICONE, and I’ve seen how a simple idea can become a big hit.
A very popular product recently is the silicone nasal aspirator. I’m here to talk about why silicone nasal aspirators are gaining attention and how they can make a difference. My goal is to help entrepreneurs and purchasing managers understand the value and potential of it.
Re-understand the silicone nasal aspirator
The global baby care product market will grow from US$5.255 billion in 2022 to US$5.826 billion in 2023, with the European and American markets accounting for an important share. The rise is attributed to growing health awareness among parents and advancements in baby care products.
Nasal aspirators are a product favored by parents. After my research, I found that pure silicone nasal aspirators are particularly popular. Here’s my analysis:
Functionality Comparison:
Manual Aspirators (Rubber & Plastic): These are basic in function, requiring manual suction force. They are less efficient in clearing nasal congestion.
Electric Aspirators: Offer stronger suction capabilities. However, their higher cost and maintenance requirements can be a downside for some parents.
Silicone Nasal Aspirators: They strike a balance between effective suction and gentle operation, suitable for delicate infant noses.
Material Analysis:
Rubber Aspirators: Often less expensive but can be harder, and less comfortable for the baby.
Plastic Aspirators: Widely used but raise concerns about BPA and other chemicals, especially in low-quality variants.
Silicone Nasal Aspirators: Stand out for being BPA-free, hypoallergenic, and gentle on a baby’s nose. Their durability and ease of cleaning also make them a hygienic choice.
The increasing demand for high-quality silicone nasal aspirators points towards a growing market with the potential for substantial business growth. As manufacturers and sellers, we are positioned to capitalize on this trend, offering products that meet the needs of health-conscious parents seeking the best for their infants.
Design Concept
Baby Comfort and Safety First
Developing a silicone nasal aspirator involves careful consideration of infant safety and comfort. Please meticulous attention to the molding line to avoid sharp edges. This ensures the aspirator is gentle against a baby’s sensitive skin.
The design of a non-return structure within the aspirator is also necessary to prevent backflow, thus maintaining hygiene and safety.
The size of the balloon is a consideration for determining the volume and suction power, requiring precise calibration. The thickness and length of the straw should be adjusted to ensure comfort for the baby.
Selecting Silicone Material
I advocate for the use of higher-quality medical-grade liquid silicone, which guarantees maximum safety for infants. This type of silicone is non-toxic, soft, and easy to clean – attributes that are vital for any product intended for babies. Its hypoallergenic nature ensures that it is safe for use even on the most sensitive skin, and its durability means it can withstand repeated sterilization without degrading.
Using good raw materials is the basis for developing good products. So you need to confirm with the supplier that the quality of the raw materials is trustworthy. A common practice is to ask them to issue a certification certificate from the upstream manufacturer.
To sum up, when creating a silicone nasal aspirator, every detail is taken into account, focusing on the product’s safety and functional design.
Mass Production
Please Select a cooperative, efficient, and stable manufacturing partner. It’s necessary to evaluate potential manufacturers on various aspects such as their production capacity, quality control standards, and reliability in delivery.
Manufacturing Process
The production of silicone nasal aspirators mainly adopts a precise injection molding process. This process starts with the creation of high-quality molds that define the shape and dimensions of the aspirator. The liquid silicone is then poured or injected into these molds. Once set, the silicone takes the desired shape of the nasal aspirator.
During the molding process, attention to detail is necessary. Factors such as the temperature and pressure during the silicone setting process must be monitored closely. This ensures that the aspirators are consistent in quality and free from defects like air bubbles or uneven surfaces.
Points of Attention in Manufacturing
Mold Precision: The molds must be crafted with precision to avoid any design flaws in the aspirators. Even minor inaccuracies can lead to issues in the final product.
Quality Control: Regular checks quality. Each batch of nasal aspirators should be inspected for consistency in shape, size, and functionality.
Hygiene Standards: Maintaining high hygiene standards. This includes clean facilities and handling procedures to prevent contamination.
Some of my suggestions
Expanding Product Range
After the initial success of your silicone nasal aspirator in the market, consider expanding your product line. Introduce additional products with varying sizes, suction powers, and shapes. This diversification caters to a wider range of needs, addressing the specific requirements of different users.
Expanding your product line also has economic benefits. Larger investments in a broader range of products can lead to economies of scale. This expansion can enhance your negotiating power with manufacturers, potentially leading to more favorable production terms and costs.
Branding and Packaging
Incorporating your brand’s logo into the product is a strategic move. Along with customizing exquisite packaging, this approach serves multiple purposes. It’s not just about increasing the product’s retail value; it’s also crafting and enhancing your brand image.
The packaging and branding subtly influence customer perceptions and can set your products apart in a competitive market. Generally, larger silicone manufacturers offer these value-added services.
Expanding Sales Channels for Silicone Nasal Aspirator
In addition to selling the silicone nasal aspirator on platforms like Amazon, supermarkets, and maternal and child product stores, there’s a significant opportunity to tap into medical-related channels. I strongly recommend exploring partnerships with medical institutions, such as children’s hospitals and clinics.
These medical entities often have a high demand for quality baby care products like nasal aspirators. At the same time, these channels can offer a more stable and potentially lucrative revenue stream.
Establishing relationships with medical professionals can also enhance the credibility of your product. When medical experts endorse or use your nasal aspirators, it boosts customer confidence in your product’s quality and safety.
Finally, I am Erique, and the above is my experience. If you find this content helpful to you, I will be very happy.
In the meantime, I hope you can put it into practice. Maybe you can choose to cooperate with NEWTOP SILICONE. We have very rich experience in manufacturing silicone nasal aspirators. We can provide professional customized manufacturing services and technical guidance for silicone products. This will save you a lot of unnecessary trouble.
This is our product catalog including silicone nasal aspirators.
Mastering Silicone Coloring Techniques
Silicone rubber industry knowledgeWould you like to freely customize the color of your brand’s silicone products? Undoubtedly, color can bring significant differentiation to your products. The color of silicone needs to be achieved by the manufacturer using a color mixing process. This is a nuanced process, blending art and technology to meet the specific aesthetic and functional needs of diverse industries.
This article aims to provide a comprehensive overview of the silicone coloring process. It will cover the selection of base materials, the intricacies of color matching, the specifics of the mixing process, and the crucial steps of quality control.
Silicone Material Types and Selection
Before mixing colors, we must first have a basic understanding of silica gel raw materials.
Liquid Silicone Rubber (LSR) vs. Solid Silicone:
LSR, known for its fluidity, suits injection molding for complex designs. Its consistency aids in achieving even color distribution, a key for intricate items. Solid silicone, firmer and more resilient, is used in extrusion and molding, ideal for uniform coloration in durable products like gaskets and keypads.
Applications and Characteristics:
LSR excels in applications where precise color matching is needed, like in medical devices or kitchenware. Solid silicone is preferred for industrial items where color integrity under physical stress matters, such as in seals and industrial parts.
Selection Criteria and Considerations:
Choosing between LSR and solid silicone depends on the product’s design and function. LSR is optimal for detailed items needing accurate color representation. Solid silicone is better for items requiring color consistency in tough conditions. This decision directly affects the coloring process, impacting the final product’s look and performance.
2. The Color Matching Process
Color matching is also one of the preliminary steps of color mixing.
Pigment Selection Principles:
Selecting the right pigment is the first step in silicone coloring. The pigment is typically made from inorganic or organic compounds. Inorganic pigments, known for their heat resistance and stability, are ideal for maintaining color in high-temperature applications. Organic pigments offer a broader range of bright and vivid colors but may require careful handling due to their sensitivity to heat and light. In the case of translucent or transparent silicone, dyes, which are soluble and blend seamlessly, are preferred over pigments.
Pigments should be purchased from trusted suppliers. Ensure It is compatible with silicone, heat-resistant, and non-reactive to maintain color integrity. The choice of pigment or dye significantly influences the final shade and consistency of the colored silicone.
Techniques and Tools for Color Matching:
Colorimeters are commonly utilized in the silicone coloring process. These devices measure light absorbance at specific wavelengths, aiding in the accurate replication of the desired color in silicone products. They are particularly useful for maintaining consistent color in different production batches.
Spectrophotometers offer a more comprehensive analysis by examining the entire spectrum of light reflected by a pigment. This information is crucial for predicting how a color will appear under varying lighting conditions, an essential factor for products exposed to different environmental settings.
Software-based color-matching systems complement these instruments. They simulate how various pigments will blend in silicone, providing a preview of the final color before physical mixing. This method streamlines the process by reducing the reliance on physical trials, saving both time and resources.
In addition to these tools, you can still rely on visual assessment. Despite technological advancements, the human eye’s evaluation is often used for the final color approval, particularly in applications where exact color matching is necessary to align with specific design requirements or aesthetic preferences.
Common Issues:
·Issue 1: Pigment Dispersion Issues
Uneven dispersion of pigments can lead to streaks or blotches in the final product.
Solution: Utilizing high-shear mixers and proper dispersion techniques helps ensure uniform pigment distribution. Selecting pigments with appropriate particle sizes for the specific silicone type can mitigate this issue.
·Issue 2: Color Shift During Curing
The curing process can alter the perceived color, leading to discrepancies between the intended and final hues.
Solution: Conducting pre-curing tests and adjusting pigment concentrations can help anticipate and correct these shifts. Using stabilizers or additives that minimize color changes during curing is also effective.
·Issue 3: Environmental Impact on Color Stability
Factors like UV exposure and temperature fluctuations can cause color fading or changes over time.
Solution: Choosing pigments with high lightfastness and thermal stability. For silicone products exposed to harsh environments, incorporating UV stabilizers and antioxidants in the formulation can prolong color longevity.
·Issue 4: Replicating Colors Across Different Batches
Achieving the same color in subsequent production batches can be challenging.
Solution: Maintaining strict control over pigment ratios and production conditions. Documenting and adhering to precise formulations and processes ensures batch-to-batch consistency.
Weighing and Mixing Silicone with Pigments
Determining the Ratio of Silicone to Pigment
Start by identifying the desired color intensity and the base color of the silicone. For intense colors, increase the pigment ratio, typically ranging between 0.1% to 3% of the total silicone weight. Lighter shades require a lower percentage of pigment.
Use digital scales to measure the pigment accurately. This ensures that the color remains consistent, especially in large-scale production.
Conduct small-scale tests to refine the pigment-to-silicone ratio. Adjust the amount based on the pigment’s opacity and tinting strength, as different pigments may require varying quantities to achieve the same color intensity.
Document the ratios and results of these tests. This record-keeping facilitates consistency in future batches, allowing for easy replication of the same color.
Basics of the Mixing Process
Adding the measured pigment to the silicone base. Ensure that the pigment is evenly distributed across the silicone for consistent color blending.
Use a high-speed mixer or stirrer, which effectively disperses the pigment throughout the silicone. Adjust the mixing speed and duration based on the silicone’s viscosity and the quantity being mixed. For instance, thicker silicones may require longer mixing times at higher speeds.
Monitor the mixture during the process. Look for any streaks or unevenness in color, which indicate that further mixing is needed. Achieving a uniform color is a sign that the pigment is thoroughly integrated.
After mixing, inspect a small sample under different lighting conditions to verify color consistency. This step helps identify any discrepancies before proceeding to large-scale production.
Clean the mixing equipment thoroughly after each batch to prevent cross-contamination of colors in subsequent mixings. This is especially important when working with multiple color batches.
Differences in Mixing Liquid and Solid Silicone
For Liquid Silicone Rubber (LSR), add the pigment to the silicone before injection molding. A high-shear mixer is ideal for this. It blends the pigment evenly without harming the silicone.
In solid silicone, mix the pigment during milling. Use a two-roll mill for this task. It mixes and conditions the silicone, ensuring color consistency.
Adjust milling time and pressure based on the silicone’s hardness and desired color intensity. Mill until the color is uniform throughout.
After milling, do a small test run with new color mixes. Create a sample to check the color meets standards.
With LSR, mix thoroughly but avoid trapping air. For solid silicone, focus on even pigment spread to prevent streaks in the final product.
Special Mixing Process for Solid Silicone
Solid silicone processing requires additional attention.
Pre-treatment
You have to be sure of one thing, the solid silicone is free of contaminants. If it’s in powder form, sift it to remove clumps. For larger pieces, a pre-cutting step may be necessary to ensure uniform size, aiding in consistent mixing.
Selecting the Right Mixing Equipment
Choose between a two-roll mill, an internal mixer, or a high-shear mixer based on your specific needs.
After mixing, take a small sample to check for color consistency. Adjust the process if needed before scaling up to full production.
Quality Control After Coloring Silicone
This usually requires a certain amount of manufacturing experience to be done well.
Removing Bubbles Formed During Mixing
After mixing, degas the silicone to remove any trapped air bubbles. This can be done using a vacuum chamber. Place the mixed silicone in the chamber and apply a vacuum. The reduced pressure causes the bubbles to rise and escape.
For smaller batches of products, you can also manually remove bubbles by spreading the silicone thinly on a flat surface and gently pressing it to release the air.
Testing Color and Quality
Use a sample from the mixed batch for testing. Check the color against a pre-determined standard under various lighting conditions to ensure accuracy.
Test the mechanical properties of the silicone, like elasticity and strength, to confirm that the addition of pigments hasn’t altered its functionality.
Conduct aging tests if the product will be used in environments with extreme temperatures or UV exposure, to ensure color stability over time.
Adjusting Batches That Don’t Meet Specifications
If a batch doesn’t match the desired color, adjust the pigment ratio and remix a small sample for retesting.
Once there is a problem with the properties of silicone rubber, consult the pigment manufacturer for guidance on compatibility and possible adjustments.
Don’t forget, document any adjustments made to the mixing process or pigment ratios for future reference, ensuring consistent results in subsequent batches.
Curing and Molding of Colored Silicone
The curing process of colored silicone is not much different from ordinary silicone. But there are several issues that need to be noted.
Curing Process of Colored Silicone
After mixing and degassing, the colored silicone is ready for curing. The curing process solidifies the silicone, fixing the color in place. Heat-cured silicones should use a temperature-controlled oven. The specific temperature and time depend on the silicone type and the size of the batch.
Please Monitor the curing process closely. Because over-curing can lead to color distortion or degradation of silicone properties. Use a timer and temperature gauge to ensure precise curing conditions.

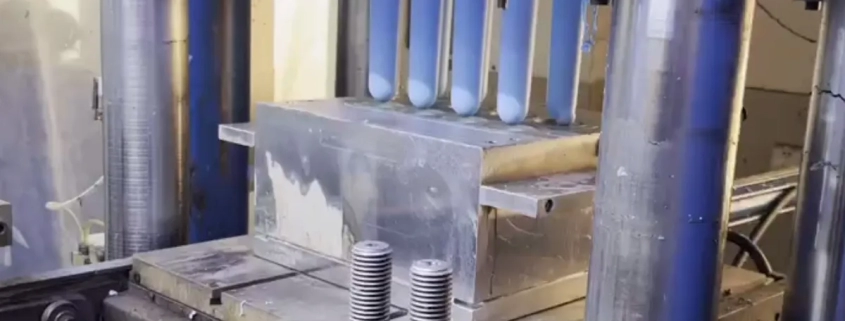

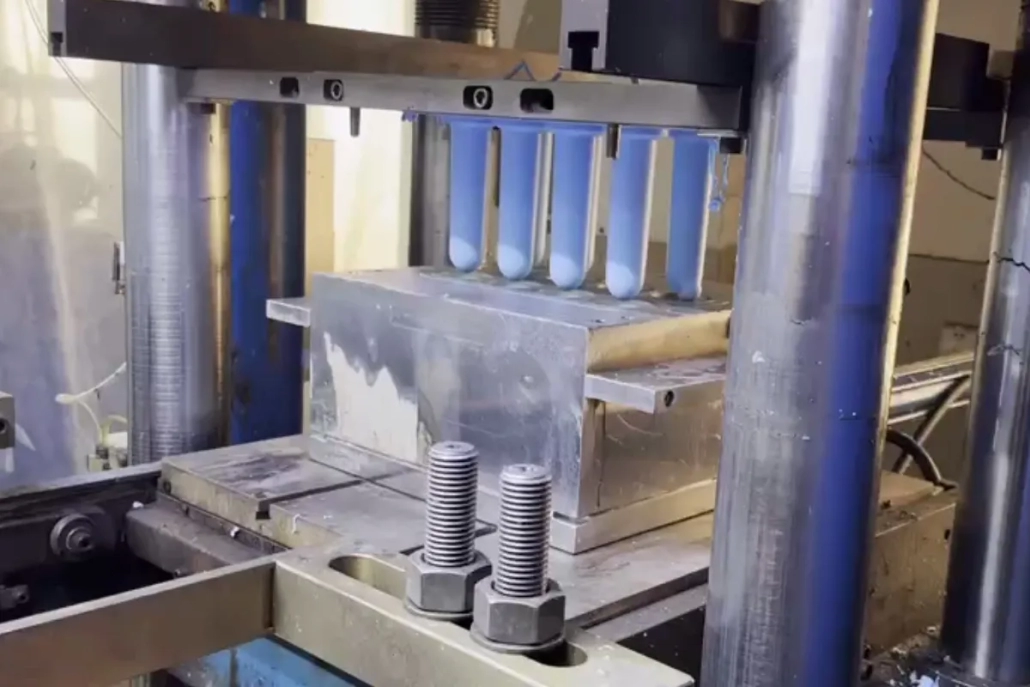

Molding Techniques and Considerations
Choose a molding technique that matches your product design. Injection molding is common for intricate designs and large-scale production. For simpler designs or small batches, compression molding might be more appropriate.

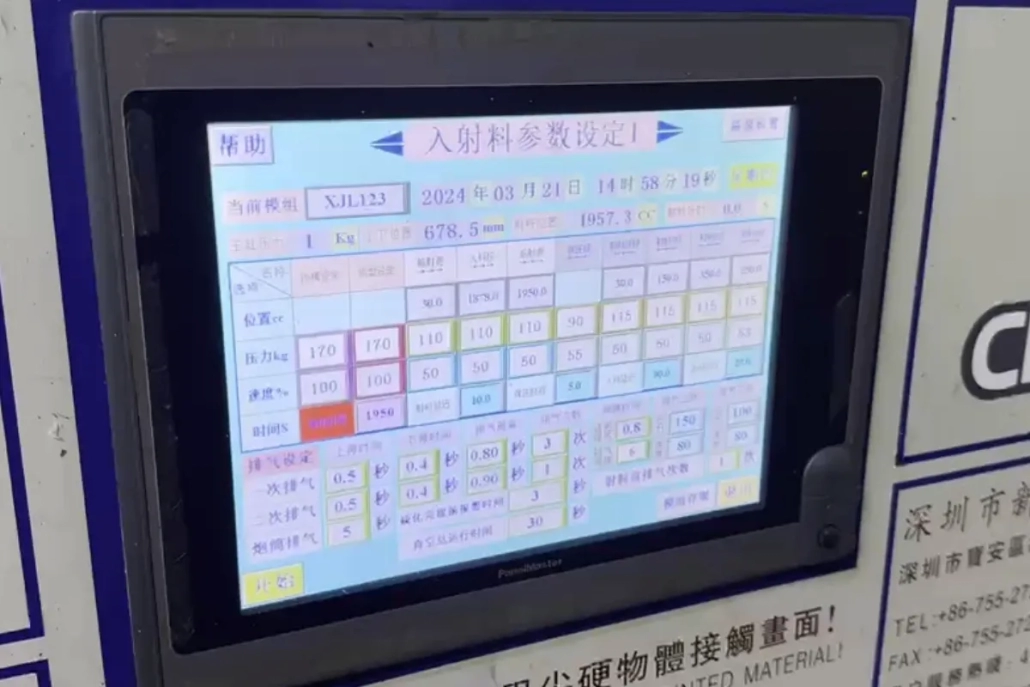

Adjust mold temperatures and pressures according to the silicone type and desired product characteristics. Higher temperatures can speed up the curing but might affect color integrity, so finding the right balance is helpful.
Apply a mold release agent if necessary, but choose one that doesn’t react with the silicone or alter the color.
Quality Control and Evaluation of the Finished Product

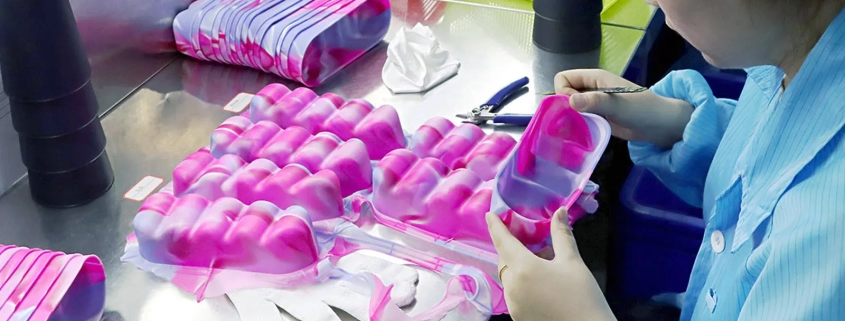

Once the silicone is cured and molded, inspect the finished product for any defects in color or form. Compare it with the standard or prototype to ensure it meets all specifications.
Conduct physical tests to check the product’s strength, elasticity, and other required properties. This ensures that the coloring process hasn’t compromised the silicone’s functionality.
For products that will face environmental stresses, perform additional tests like UV resistance and thermal stability to confirm that the color remains consistent and the material properties are intact under these conditions.
Case Study: NEWTOP SILICONE’s Colored Silicone Cup Project
NEWTOP SILICONE, a silicone product manufacturer, undertook a project to produce colored silicone cups for a brand client. The goal was to create vibrant, durable, and uniformly colored cups.
Precise Color Matching for Brand Consistency
To match the client’s specific brand colors, NEWTOP SILICONE utilized advanced colorimeters and spectrophotometers. This allowed for exact color replication, ensuring the cups accurately reflected the brand’s color scheme.
Ensuring Color Consistency Across Different Batches
The company implemented stringent quality control measures. They maintained detailed records of pigment ratios and mixing conditions for each batch, ensuring consistency in color across different production runs.
Retaining Silicone’s Flexibility and Durability Post-Coloring
The company chose high-quality pigments that were compatible with silicone’s physical properties. They also performed rigorous testing on sample cups to ensure that the addition of pigments did not compromise the silicone’s elasticity and strength.
It demonstrates that achieving brand-specific colors while retaining material properties is feasible with the right approach.
Conclusion
The silicone coloring process centers on precise pigment ratios, choosing the right equipment, and strict quality control. Accuracy in measuring and mixing ensures consistent colors and maintains silicone properties.
Looking ahead, advances in pigment technology and mixing techniques will improve color precision and production efficiency. I hope these developments will serve as motivation for you and me to continue moving forward in the industry.
